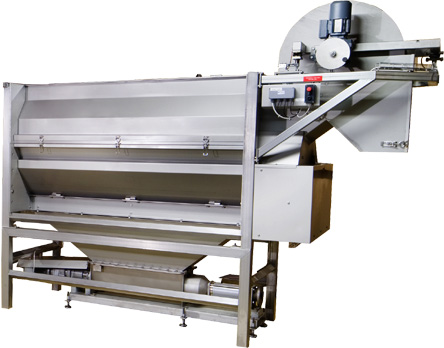

Formit Combi 1000
The FORMIT Combi-peelers are based on a patented method developed by FORMIT Foodprocessing.

The combi-peeler can be used for peeling of both small and large sized products. The peeler works with round and oval shaped products.

Feeding the peeler with a clean (washed or brushed) raw material, the peeler produces a knife-like cut surface on the end product

Further info about the Combi-peeler principle >>

All Combi-peelers can be operated without adding water in the peeling process. Water is used for cleaning and washing purposes only.

By changing the peeling element types the Combi-peeler can be adapted for variuos purposes.

Peeled product samples >>

Peeling element alternatives>>

The feeding of raw material to a peeler is important for the quality and yield. With good raw material feeding, you can ensure that your peeling project will be successful.

Building a good raw material feeder >>

By arranging good transportation for the peeling waste, it is easier to keep the production environment clean.

Arranging waste transport from the Combi-1000>>


Size with standard frame

Overall length 2990mm (118")
Overall width 1100mm (43")
Overall height 2206mm (87")
Frame length 2280mm (90")
In-feed chute width 500mm (20")
In-feed height 1642mm (65")
Discharge height 1254mm (49")
Overall weight 1250 kg (2750 lbs)


Supply voltage

220-415 v 3 phases 50-60hz



Rollers 4 x 1.5 kW (4 x 2HP)
Auger 1 x 0.37 kW (1 x 0.5HP)



Number of rollers 10 or 5
Roller diameter 88 mm (3,5 ")
Roller length 2000 mm (79 ")
Abrasive 760 mm (30 ")
Knife 1240 mm (49")



Diameter 800 mm (31.5")
Pitch 430 mm (17")



600-1100kg/h depending on raw material type and quality. The max. capacity indicated for good quality, size graded potatoes.

NOTE: Due to continual improvements, the accuracy of the description and illustration cannot be completely guaranteed.

Formit Combi 1000

Advantages of the Combi-1000-CK peelers are:

1. From raw material to a Knife peeled product in one machine.

2. A natural shaped end product and thereby superior yield compared to other knife peeled products. (No flat peeling).

3. A large variety of products can be peeled in the peeler without mechanical adjustments to the peeler.

4. Can be equipped with plc panel programmed for different raw materials (easy to use Right pre-settings gives good end product and little waist at startup).

5. Gentle and adjustable tumbling of raw material especially important with sensible products.

6. Can be operated with or without water.

7. Semi dry waist pulp that can be pumped.

8. Good access for cleaning and maintenance.

9. Long shelf life on rollers both carborundum and knife.(longer shelve life than a conventional carborundum peeler due to high roller speeds)
(Recommended carborundum regretting interval on potatoes 1,2M kilos and recommended re-sharpening on first two knife elements 3,6M kilos on potatoes).

10. Low maintenance costs due to long service intervals.

11. Trade in of your secondhand rollers.

12. Continuous self cleaning of the roller due to hi rotation speed.

13. Low energy consumption. (only one peeler with comparably small motors)

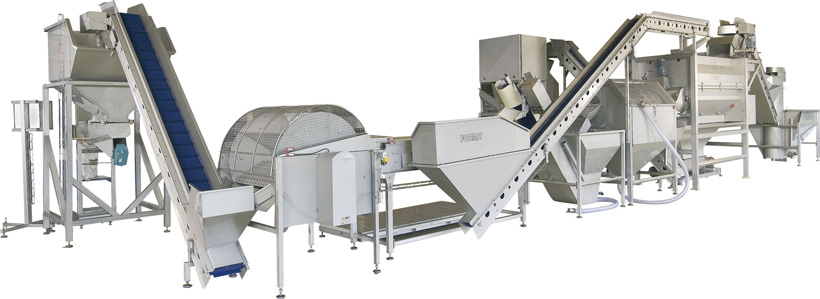

Photo below, COMBI-1000 integrated in a production line.
(Just click on the photo to enlarge):
